Heat Insulation Outdoor Data Cabinet Galvanized Stee Floor Mount IP55 Support Padlock

Brand Name : ESTEL

Model Number : 131090921050005

Certification : ISO9001, CE, 3C, FCC, TLC, IP55

Place of Origin : Shenzhen, China (Mainland)

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, L/C,D/A, Western Union, Paypal, etc

Supply Ability : 5,000 sets per month

Delivery Time : 15-20 working days

Packaging Details : Wooden case

External size : W× D×H 900 ×900 ×2100mm

Cabinet Lock : Anti-theft three point lock(support padlock)

Cable Inlets : From cabinet bottom

Mounting type : Floor mount

Cooling system : Heat Exchanger and fans

Protection Level : IP55

Contact Now

Galvanized Steel With Heat Insulation Outdoor Telecom Cabinet With Heat Exchanger

1.Technical Parameters

Item Type Technical Parameter
Structure Dimension

External Dimension: H×W×D 2100×900×900mm
Layout 1 compartment
Equipment Installation Method 19” rack
Door With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)
Material Galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate
Heat Insulation There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF.
Structure Assembled
Ingress Protection IP55
Temperature Control Cooling Heat exchanger and DC48V fans
Lighting LED lamp 48V LED lamps (immovable), with protective circuit breaker
Temperature Temperature Working Temperature: -40°C ~ +55°C
Storage Temperature: -50°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1120 ×(1±5%)W/m2

2.Cabinet Applications

This series Outdoor Telecom Equipment Cabinet is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.

3.Cabinet Door And Lock

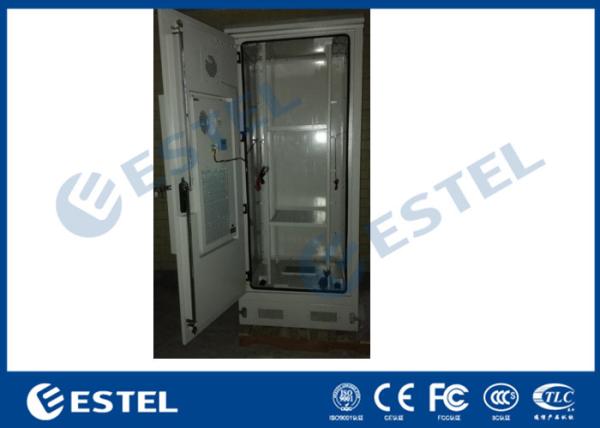

The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock. Each cabinet door include open door sensor, working together with the environment monitoring unit.

Heat Insulation Outdoor Data Cabinet Galvanized Stee Floor Mount IP55 Support Padlock

4.Cabinet Inlets

Feeder cable and other external cables all use bottom wiring method.

Heat Insulation Outdoor Data Cabinet Galvanized Stee Floor Mount IP55 Support Padlock

5.Our Delivery Agent

The goods can be shipped by sea, by air, by courier, by land, by train, etc.Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.

Heat Insulation Outdoor Data Cabinet Galvanized Stee Floor Mount IP55 Support Padlock
